鸿蒙OpenHarmony【animateTransform】svg组件

本文介绍了SVG动画transform属性的使用方法和示例代码。该属性支持五种变换类型（translate、scale、rotate、skewX、skewY），通过animateTransform标签实现持续动画效果。文档展示了不同变换类型的单动画示例，包括旋转、缩放、扭曲和平移动画，并提供了动画叠加的复合效果演示。CSS部分定义了基础容器样式，HTML示例代码则详细呈现了如何设置各种变换动画的参

我爱一条柴ya

145人浏览 · 2025-06-27 16:00:41

我爱一条柴ya · 2025-06-27 16:00:41 发布

权限列表

无

子组件

不支持。

属性

支持animate属性和以下表格中的属性。

名称	类型	默认值	必填	描述
type	[translate	scale	rotate	skewX

示例

<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" from="0 120 140" to="360 360 420" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" from="0" to="360" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="scale" from="1" to="2" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="scale" from="1 1" to="2 4" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewY" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="skewY" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0 0" to="0 300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0 0" to="300 300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
    </svg>
  </div>
</div>

/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}

.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}

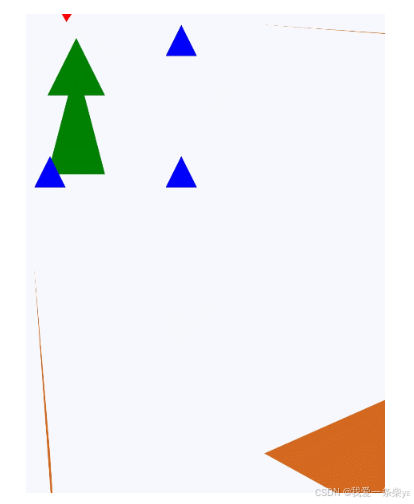

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

动画叠加

<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <polygon points="60,30 90,90 30,90" fill="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" values="0; 5; 0; 10" keyTimes="0;
          0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="scale" values="1; 1.2; 1; 1.2"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="scale" values="1; 1.2; 1; 1.2"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" values="0; 10; 0; 10"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
    </svg>
  </div>
</div>

/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}
.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}

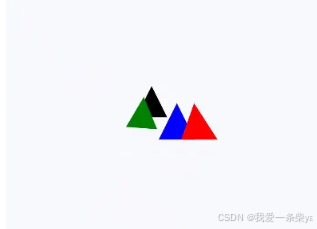

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

涉及组件示例

<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <svg fill="white" width="600" height="600" viewBox="0 0 50 50">
        <path stroke="black" fill="none" stroke-linejoin="miter" stroke-miterlimit="1" id="p2"
          d="M1,19 l7,-3 l7,3 m2,0 l3.5,-3 l3.5 ,3 m2,0 l2 ,-3 l2 ,3 m2,0 l0.75,-3 l0.75,3 m2,0 l0.5 ,-3 l0.5,3">
          <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="25"
            dur="3s" repeatCount="indefinite"></animateTransform>
        </path>
      </svg>
      <polygon points="60,20 90,80 30,80" fill="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <circle cx="60" cy="130" r="40" stroke-width="4" fill="white" stroke="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </circle>
      <line x1="10" x2="300" y1="280" y2="280" stroke-width="10" stroke="black" stroke-linecap="square">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </line>
      <polyline points="10,380 50,335 50,385 100,310" fill="white" stroke="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </polyline>
      <ellipse cx="100" cy="450" rx="70" ry="50" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </ellipse>
      <rect width="100" height="100" x="50" y="540" stroke-width="10" stroke="red" rx="10" ry="10"
        stroke-dasharray="5 3" stroke-dashoffset="3">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </rect>
      <text x="20" y="700" fill="#D2691E" font-size="40">
        animate-transform
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </text>
    </svg>
  </div>
</div>

/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}
.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}

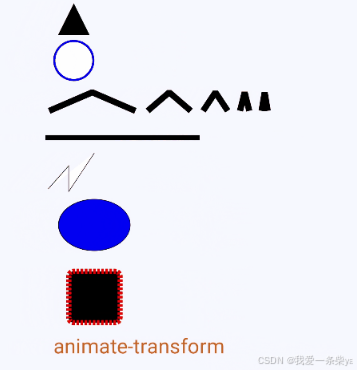

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传
