项目介绍

• 项目名称：MaterialSpinner
• 所属系列：openharmony的第三方组件适配移植
• 功能：实现Material风格的可下拉列表控件
• 项目移植状态：选中下拉框时无水波纹效果;下拉框展示选项内容无阴影边框
• 调用差异：无
• 开发版本：sdk6，DevEco Studio 2.2 Beta1
• 基线版本：Release 1.0.8

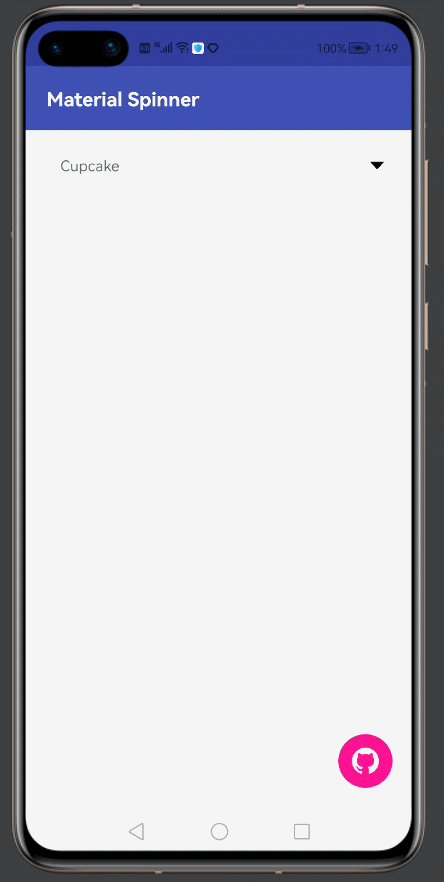

效果演示

安装教程

1、在项目根目录下的build.gradle文件中

allprojects {
   repositories {
       maven {
           url 'https://s01.oss.sonatype.org/content/repositories/releases/'
       }
   }
}

2.在entry模块的build.gradle文件中

dependencies {
   implementation 'com.gitee.chinasoft_ohos:MaterialSpinner:1.0.0'
   ......
}

在sdk6，DevEco Studio 2.2 Beta1下项目可直接运行 如无法运行，删除项目.gradle,.idea,build,gradle,build.gradle文件， 并依据自己的版本创建新项目，将新项目的对应文件复制到根目录下

使用说明

组件主要由Text控件和PopupDialog形式的ListContainer组成。

原开源项目重写Text，现在openharmony项目重写DependentLayout包含Text的组合控件。

XML中添加下拉框控件:

<com.jaredrummler.materialspinner.MaterialSpinner
    ohos:id="$+id:spinner"
    ohos:width="match_parent"
    ohos:height="match_content"
    ohos:min_height="36vp"
    ohos:bottom_margin="$float:fab_margin"
    ohos:left_margin="$float:fab_margin"
    ohos:end_margin="$float:fab_margin"
    ohos:top_margin="$float:fab_margin"
    app:ms_dropdown_max_height="360vp"
    app:ms_dropdown_height="360vp"
    app:ms_background_selector_press="#FF0000"
    app:ms_background_selector_normal="#00FF00"
    app:ms_background_color="#FFFFFF"
    app:ms_text_color="$color:black"
    app:ms_hint_color="$color:black"
    app:ms_arrow_tint="#000000"
    app:ms_hide_arrow="false"
    app:ms_hint=""
    app:ms_padding_top="22"
    app:ms_padding_left="50"
    app:ms_padding_bottom="22"
    app:ms_padding_right="30"
    app:ms_popup_padding_top="0"
    app:ms_popup_padding_left="26"
    app:ms_popup_padding_bottom="0"
    app:ms_popup_padding_right="0" />

下拉控件加入列表项，并且在点击后触发显示:

    MaterialSpinner spinner = (MaterialSpinner) findComponentById(ResourceTable.Id_spinner);
    spinner.setItems("Ice Cream Sandwich", "Jelly Bean", "KitKat", "Lollipop", "Marshmallow");
    spinner.setOnItemSelectedListener(new MaterialSpinner.OnItemSelectedListener<String>() {

        @Override
        public void onItemSelected(MaterialSpinner view, int position, long id, String item) {
            DirectionalLayout toastLayout = (DirectionalLayout) LayoutScatter.getInstance(MainAbilitySlice.this)
                    .parse(ResourceTable.Layout_layout_toast, null, false);
            Text text = (Text) toastLayout.findComponentById(ResourceTable.Id_msg_toast);
            text.setText("Clicked " + item);
            text.setTextAlignment(TextAlignment.LEFT);
            text.setMultipleLine(true);
            text.setMaxTextLines(2);
            text.setTruncationMode(Text.TruncationMode.ELLIPSIS_AT_END);
            new ToastDialog(MainAbilitySlice.this)
                    .setComponent(toastLayout)
                    .setSize(DirectionalLayout.LayoutConfig.MATCH_CONTENT, DirectionalLayout.LayoutConfig.MATCH_CONTENT)
                    .setAlignment(LayoutAlignment.BOTTOM | LayoutAlignment.HORIZONTAL_CENTER)
                    .setDuration(5000)
                    .setOffset(0, 60)
                    .show();
        }
    });

自定义MaterialSpinner控件，可以添加自定义属性，具体可用属性如下:

测试信息

CodeCheck代码测试无异常

CloudTest代码测试无异常

病毒安全检测通过

当前版本demo功能与原组件基本无差异

版本迭代

• 1.0.0

版权和许可信息

Copyright (C) 2016 Jared Rummler

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
