简介:

动态设置组件的属性,支持开发者在属性设置时使用 if/else 语法,且根据需要使用多态样式设置属性。

文档环境:

  • 开发环境:Windows 10 专业版
  • DevEco Studio 版本:DevEco Studio 4.0Release (4.0.0.600)
  • SDK 版本:4.1.6.1 Beta1 (full sdk)
  • API 版本:Version 11
  • 开发板型号:DAYU200(RK3568)
  • 系统版本:OpenHarmony 4.1.6.1

演示 demo:

  • 通过自定义实现 AttributeModifier 接口,在 applyNormalAttribute、applyPressedAttribute、applyDisabledAttribute、applySelectedAttribute、applyFocusedAttribute 方法中实现自定义组件在不同状态时的样式。下面代码为实现 AttributeModifier 接口的自定义实现类。

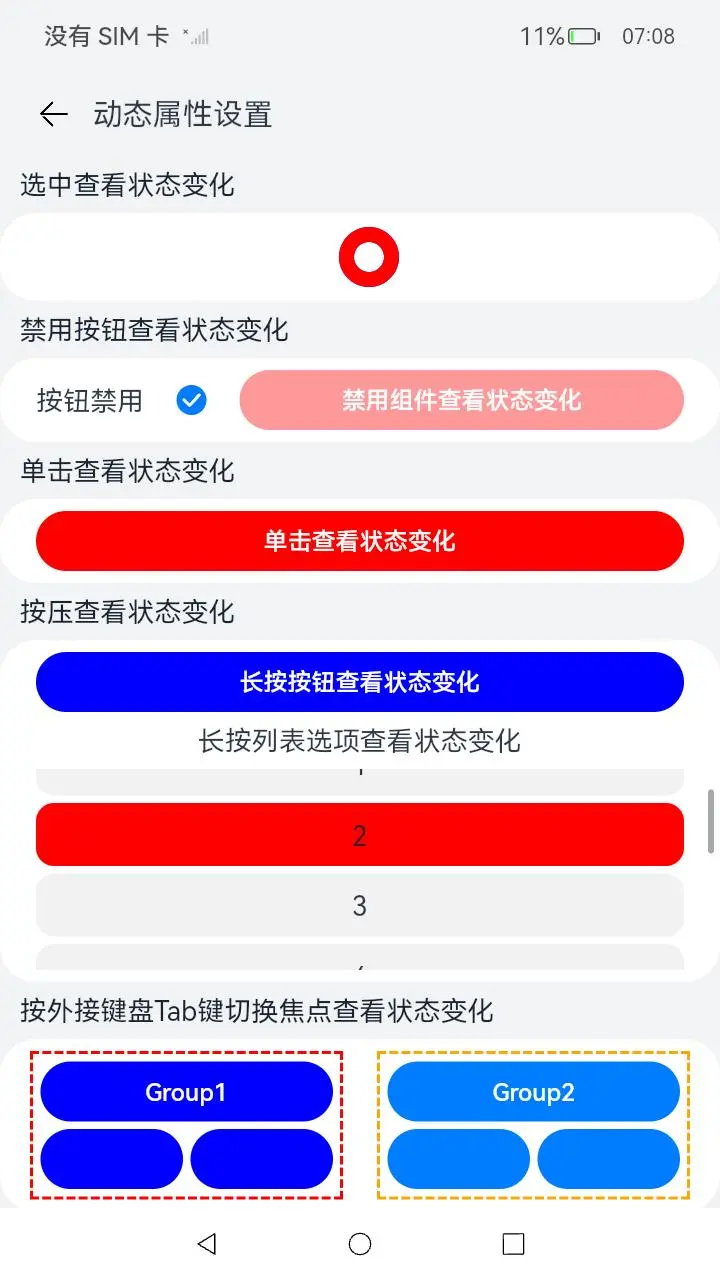

demo 运行效果:

核心代码如下:

    class MyButtonNormalModifier implements AttributeModifier<ButtonAttribute> {
      isBlue: boolean = false
      applyNormalAttribute(instance: ButtonAttribute): void {
        if (this.isBlue) {
          instance.backgroundColor(Color.Red);
        } else {
          instance.backgroundColor(Color.Blue);
        }
      }
    }
    class MyButtonPressedModifier implements AttributeModifier<ButtonAttribute> {
      applyNormalAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Blue);
      }
      applyPressedAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Red);
      }
    }

    class MyListItemPressedModifier implements AttributeModifier<ListItemAttribute> {
      applyNormalAttribute(instance: ListItemAttribute): void {
        instance.backgroundColor(\$r('app.color.background\_grey'));
      }
      applyPressedAttribute(instance: ListItemAttribute): void {
        instance.backgroundColor(Color.Red);
      }
    }

    class MyButtonDisableModifier implements AttributeModifier<ButtonAttribute> {
      applyNormalAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Blue);
      }
      applyDisabledAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Red);
      }
    }

    class MyRadioSelectModifier implements AttributeModifier<RadioAttribute> {
      applyNormalAttribute(instance: RadioAttribute): void {
        instance.backgroundColor(Color.Blue);
      }
      applySelectedAttribute(instance: RadioAttribute): void {
        instance.radioStyle({
          checkedBackgroundColor: Color.Red
        })
      }
    }

    class MyButtonFocusModifier implements AttributeModifier<ButtonAttribute> {
      applyNormalAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Blue);
      }
      applyFocusedAttribute(instance: ButtonAttribute): void {
        instance.backgroundColor(Color.Red);
      }
    }

基于 AttributeModifier 实现了自定义的组件属性后,就可以使用了,例如:

@Entry
@Component
struct AttributeModifierSample {
@State normalModifier: MyButtonNormalModifier = new MyButtonNormalModifier();
@State buttonPressModifier: MyButtonPressedModifier = new MyButtonPressedModifier();
build() {
Column() {
TitleBar({ title: \$r('app.string.attribute\_modifier') })
Row() {
Column() {
IntroductionTitle({ introduction: \$r('app.string.click\_to\_see\_status') })
Row({ space: 10 }) {
Button(\$r('app.string.component\_id\_click\_to\_see\_attributeModifier'))
.MyButtonStyle()
.id('clickButton')
.attributeModifier(this.normalModifier)
.onClick(() => {
this.normalModifier.isBlue = !this.normalModifier.isBlue;
})
}
.justifyContent(FlexAlign.Center)
.borderRadius(24)
.width('100%')
.backgroundColor(Color.White)
.margin({ left: 12, right: 12 })
      IntroductionTitle({ introduction: \$r('app.string.press\_to\_see\_status') })
      Column({ space: 8 }) {
        Button(\$r('app.string.component\_id\_press\_to\_see\_attributeModifier'))
          .MyButtonStyle()
          .attributeModifier(this.buttonPressModifier)
          .id('longClickButton')

        Row(){
          Text(\$r('app.string.component\_id\_press\_list\_to\_see\_attributeModifier'))
            .fontSize(18)
        }
}
.height('100%')
.width('100%')
.backgroundColor(\$r('app.color.background\_shallow\_grey'))
}
}
