wifi框架层流程之--EnableHotpot流程

FishingLover

39人浏览 · 2025-11-24 16:21:33

FishingLover · 2025-11-24 16:21:33 发布

OpenHarmony-wifi开发学习路径：https://laval.csdn.net/69159bca0e4c466a32e78763.html

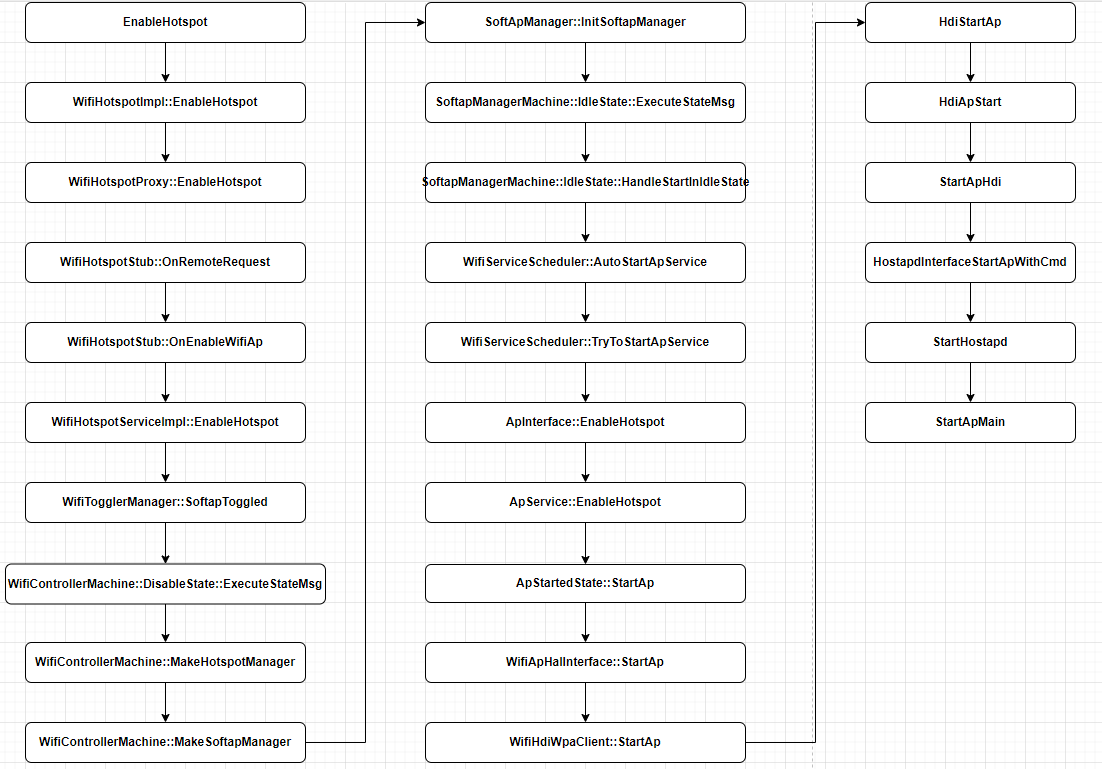

EnableHotpot的主要流程：

所在文件:foundation\communication\wifi\wifi\frameworks\js\napi\src\wifi_napi_hotspot.cpp
NO_SANITIZE("cfi") napi_value EnableHotspot(napi_env env, napi_callback_info info)
{
ErrCode ret = wifiHotspotPtr->EnableHotspot();
WIFI_NAPI_RETURN(env, ret == WIFI_OPT_SUCCESS, ret, SYSCAP_WIFI_AP_CORE);
}

所在文件：foundation\communication\wifi\wifi\frameworks\native\src\wifi_hotspot_impl.cpp
ErrCode WifiHotspotImpl::EnableHotspot(const ServiceType type)
{
return client_->EnableHotspot(type);
}

所在文件：foundation\communication\wifi\wifi\frameworks\native\src\wifi_hotspot_proxy.cpp
ErrCode WifiHotspotProxy::EnableHotspot(const ServiceType type)
{
MessageOption option;
MessageParcel data;
MessageParcel reply;
data.WriteInterfaceToken(GetDescriptor());
data.WriteInt32(0);
data.WriteInt32(static_cast<int>(type));
int error = Remote()->SendRequest(static_cast<uint32_t>(HotspotInterfaceCode::WIFI_SVR_CMD_ENABLE_WIFI_AP), data,
reply, option);

return ErrCode(reply.ReadInt32());
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_ap_sa\wifi_hotspot_stub.cpp
handleFuncMap[static_cast<uint32_t>(HotspotInterfaceCode::WIFI_SVR_CMD_ENABLE_WIFI_AP)] = [this](uint32_t code,
MessageParcel &data, MessageParcel &reply,
MessageOption &option) { OnEnableWifiAp(code, data, reply, option); };

int WifiHotspotStub::OnRemoteRequest(uint32_t code, MessageParcel &data, MessageParcel &reply, MessageOption &option)
{
if (data.ReadInterfaceToken() != GetDescriptor()) {
WIFI_LOGE("Hotspot stub token verification error: %{public}d", code);
return WIFI_OPT_FAILED;
}

int exception = data.ReadInt32();

HandleFuncMap::iterator iter = handleFuncMap.find(code);
(iter->second)(code, data, reply, option);
return 0;
}

void WifiHotspotStub::OnEnableWifiAp(uint32_t code, MessageParcel &data, MessageParcel &reply, MessageOption &option)
{
int32_t serviceType = data.ReadInt32();
ErrCode ret = EnableHotspot(ServiceType(serviceType));
reply.WriteInt32(0);
reply.WriteInt32(ret);
return;
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_ap_sa\wifi_hotspot_service_impl.cpp
ErrCode WifiHotspotServiceImpl::EnableHotspot(const ServiceType type)
{
ErrCode errCode = CheckCanEnableHotspot(type);
if (errCode != WIFI_OPT_SUCCESS) {
return errCode;
}
WifiManager::GetInstance().StopGetCacResultAndLocalCac(CAC_STOP_BY_AP_REQUEST);
return WifiManager::GetInstance().GetWifiTogglerManager()->SoftapToggled(1, m_id);
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_sub_manage\wifi_toggler_manager.cpp
ErrCode WifiTogglerManager::SoftapToggled(int isOpen, int id)
{
pWifiControllerMachine->SendMessage(CMD_SOFTAP_TOGGLED, isOpen, id);
return WIFI_OPT_SUCCESS;
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_controller\wifi_controller_state_machine.cpp
bool WifiControllerMachine::DisableState::ExecuteStateMsg(InternalMessagePtr msg)
{
switch (msg->GetMessageName()) {
#ifdef FEATURE_AP_SUPPORT
case CMD_SOFTAP_TOGGLED:
if (msg->GetParam1()) {
int id = msg->GetParam2();
pWifiControllerMachine->MakeHotspotManager(id, true);
pWifiControllerMachine->SwitchState(pWifiControllerMachine->pEnableState);
}
break;
#endif
return true;
}

void WifiControllerMachine::MakeHotspotManager(int id, bool startTimer)
{
hotspotMode = CalculateHotspotMode(id);
if (hotspotMode == HotspotMode::SOFTAP && !softApManagers.IdExist(id)) {
MakeSoftapManager(SoftApManager::Role::ROLE_SOFTAP, id);
if (startTimer) {
StartTimer(CMD_AP_START_TIME, SOFT_AP_TIME_OUT);
}
return;
}
}

void WifiControllerMachine::MakeSoftapManager(SoftApManager::Role role, int id)
{
auto softapmode = std::make_shared<SoftApManager>(role, id);
softapmode->RegisterCallback(WifiManager::GetInstance().GetWifiTogglerManager()->GetSoftApCallback());
softapmode->InitSoftapManager();
softApManagers.AddManager(softapmode);
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_controller\softap_manager.cpp
ErrCode SoftApManager::InitSoftapManager()
{
pSoftapManagerMachine = new (std::nothrow) SoftapManagerMachine();
pSoftapManagerMachine->InitSoftapManagerMachine()
pSoftapManagerMachine->RegisterCallback(mcb);
pSoftapManagerMachine->SendMessage(SOFTAP_CMD_START, static_cast<int>(curRole), mid);
return WIFI_OPT_SUCCESS;
}

所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_controller\softap_manager_state_machine.cpp
bool SoftapManagerMachine::IdleState::ExecuteStateMsg(InternalMessagePtr msg)
{
switch (msg->GetMessageName()) {
case SOFTAP_CMD_START:
HandleStartInIdleState(msg);
break;
case SOFTAP_CMD_STOP:
pSoftapManagerMachine->StopSoftap();
break;
default:
break;
}
return true;
}

void SoftapManagerMachine::IdleState::HandleStartInIdleState(InternalMessagePtr msg)
{
mid = msg->GetParam2();
WifiServiceScheduler::GetInstance().AutoStartApService(mid, pSoftapManagerMachine->ifaceName);
pSoftapManagerMachine->SwitchState(pSoftapManagerMachine->pStartedState);
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_controller\wifi_service_scheduler.cpp
ErrCode WifiServiceScheduler::AutoStartApService(int instId, std::string &softApIfName)
{
WifiOprMidState apState = WifiConfigCenter::GetInstance().GetApMidState(instId);
if (apState != WifiOprMidState::CLOSED) {
if (apState == WifiOprMidState::CLOSING) {
return WIFI_OPT_FAILED;
} else {
return WIFI_OPT_SUCCESS;
}
}
#ifdef HDI_CHIP_INTERFACE_SUPPORT
std::string ifaceName = "";
if (softApIfaceNameMap.count(instId) > 0) {
ifaceName = softApIfaceNameMap[instId];
}
if (ifaceName.empty() && !HalDeviceManager::GetInstance().CreateApIface(
[this](std::string &destoryIfaceName, int createIfaceType) {
this->SoftApIfaceDestoryCallback(destoryIfaceName, createIfaceType);
},
ifaceName)) {
WIFI_LOGE("AutoStartApService, create iface failed!");
return WIFI_OPT_FAILED;
}
WifiConfigCenter::GetInstance().SetApIfaceName(ifaceName);
softApIfName = ifaceName;
softApIfaceNameMap.insert(std::make_pair(instId, ifaceName));
#endif
WifiConfigCenter::GetInstance().SetApMidState(apState, WifiOprMidState::OPENING, 0);
ErrCode errCode = TryToStartApService(instId);
WifiManager::GetInstance().GetWifiHotspotManager()->StopUnloadApSaTimer();
return WIFI_OPT_SUCCESS;
}

ErrCode WifiServiceScheduler::TryToStartApService(int instId)
{
ErrCode errCode = WIFI_OPT_FAILED;
do {
// 记载WIFI_SERVICE_P2P
WifiServiceManager::GetInstance().CheckAndEnforceService(WIFI_SERVICE_AP);
IApService *pService = WifiServiceManager::GetInstance().GetApServiceInst(instId);
errCode = pService->RegisterApServiceCallbacks(
WifiManager::GetInstance().GetWifiHotspotManager()->GetApCallback());
errCode = pService->RegisterApServiceCallbacks(WifiCountryCodeManager::GetInstance().GetApCallback());
errCode = pService->EnableHotspot();
} while (false);
return errCode;
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_ap\ap_interface.cpp
ErrCode ApInterface::EnableHotspot()
{
return m_ApService.EnableHotspot();
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_ap\ap_service.cpp
ErrCode ApService::EnableHotspot()
{
std::string moduleName = "ApService_" + std::to_string(m_id);
m_apObserver = std::make_shared<WifiCountryCodeChangeObserver>(moduleName, m_ApStateMachine);
WifiCountryCodeManager::GetInstance().RegisterWifiCountryCodeChangeListener(m_apObserver);
m_ApStateMachine.OnApStateChange(ApState::AP_STATE_STARTING);
m_ApStateMachine.RegisterEventHandler();
apStartedState_.StartMonitor();
#ifdef SUPPORT_LOCAL_RANDOM_MAC
apStartedState_.SetRandomMac();
#endif
do {
       apStartedState_.SetCountry();
       apStartedState_.StartAp();
WIFI_LOGI("StartAP is ok.");
       apStartedState_.SetConfig();
m_ApStateMachine.SendMessage(static_cast<int>(ApStatemachineEvent::CMD_START_HOTSPOT));
return ErrCode::WIFI_OPT_SUCCESS;
} while (0);

return WIFI_OPT_FAILED;
}

所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_ap\ap_started_state.cpp
bool ApStartedState::StartAp() const
{
std::string ifaceName = WifiConfigCenter::GetInstance().GetApIfaceName();
WifiApHalInterface::GetInstance().StartAp(m_id, ifaceName);
return true;
}
所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\wifi_hal_interface\wifi_ap_hal_interface.cpp
WifiErrorNo WifiApHalInterface::StartAp(int id, const std::string &ifaceName)
{
CHECK_NULL_AND_RETURN(mHdiWpaClient, WIFI_HAL_OPT_FAILED);
WifiErrorNo ret = mHdiWpaClient->StartAp(id, ifaceName);
return ret;
}

所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\client\hdi_client\wifi_hdi_wpa_client.cpp
WifiErrorNo WifiHdiWpaClient::StartAp(int id, const std::string &ifaceName)
{
return HdiStartAp(ifaceName.c_str(), id);
}
所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\client\hdi_client\hdi_interface\wifi_hdi_wpa_ap_impl.c
WifiErrorNo HdiStartAp(const char *ifaceName, int id)
{
LOGI("Ready to start hostpad: %{public}d, %{public}s", id, ifaceName);
   SetHdiApIfaceName(ifaceName);
   HdiApStart(id, ifaceName);
   RegisterApEventCallback();
LOGI("HdiStartAp: success.");
return WIFI_HAL_OPT_OK;
}

所在文件:foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\client\hdi_client\hdi_interface\wifi_hdi_wpa_proxy.c
WifiErrorNo HdiApStart(int id, const char *ifaceName)
{
LOGI("HdiApStart start...");
g_id = id;
WifiErrorNo result = WIFI_HAL_OPT_FAILED;
do {
result = CopyConfigFile(WIFI_DEFAULT_CFG);
result = GetApInstance();
result = StartApHdi(id, ifaceName);
result = RegistHdfApDeathCallBack();
g_apIsRunning = true;
LOGI("HdiApStart start success");
} while (0);

return result;
}

所在文件：foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\client\hdi_client\hdi_interface\wifi_hdi_wpa_proxy.c
static WifiErrorNo StartApHdi(int id, const char *ifaceName)
{
int32_t ret = g_apObj->StartApWithCmd(g_apObj, ifaceName, id);
return WIFI_HAL_OPT_OK;
}

所在文件:

foundation\communication\wifi\wifi\services\wifi_standard\wifi_framework\wifi_manage\wifi_native\client\hdi_client\hdi_interface\wifi_hdi_wpa_proxy.c
int32_t HostapdInterfaceStartApWithCmd(struct IHostapdInterface *self, const char *ifName, int id)
{
HDF_LOGI("Enter hdi %{public}s", __func__);
InitCfg(ifName);
StartHostapd();
   StartHostapdHal(id);
HDF_LOGI("%{public}s: hostapd start successfully", __func__);
return HDF_SUCCESS;
}
所在文件：drivers\peripheral\wlan\hostapd\interfaces\hdi_service\service_common\hostapd_common_cmd.c
static int32_t StartHostapd(void)
{
// #define WIFI_MULTI_CMD_MAX_LEN 1024
   // #define HOSTAPD_START_CMD "hostapd -g /data/service/el1/public/wifi/sockets/wpa/hostapd"
char startCmd[WIFI_MULTI_CMD_MAX_LEN] = {0};
   memcpy_s(startCmd, WIFI_MULTI_CMD_MAX_LEN, HOSTAPD_START_CMD,
strlen(HOSTAPD_START_CMD);
HDF_LOGI("Cmd is %{public}s", startCmd);
StartApMain(WPA_HOSTAPD_NAME, startCmd);
return HDF_SUCCESS;
}

static int32_t StartApMain(const char *moduleName, const char *startCmd)
{
int32_t ret;

ret = pthread_create(&g_tid, NULL, ApThreadMain, (void *)startCmd);
pthread_setname_np(g_tid, "ApMainThread");

usleep(WPA_SLEEP_TIME);
return HDF_SUCCESS;
}

static void *ApThreadMain(void *p)
{
const char *startCmd;
struct StApMainParam param = {0};
char *tmpArgv[MAX_WPA_MAIN_ARGC_NUM] = {0};

startCmd = (const char *)p;
HDF_LOGI("%{public}s: startCmd: %{public}s", __func__, startCmd);
SplitCmdString(startCmd, &param);
for (int i = 0; i < param.argc; i++) {
tmpArgv[i] = param.argv[i];
HDF_LOGE("%{public}s: tmpArgv[%{public}d]: %{public}s", __func__, i, tmpArgv[i]);
}
int ret = ap_main(param.argc, tmpArgv);
HDF_LOGI("%{public}s: run ap_main ret:%{public}d", __func__, ret);
return NULL;
}
